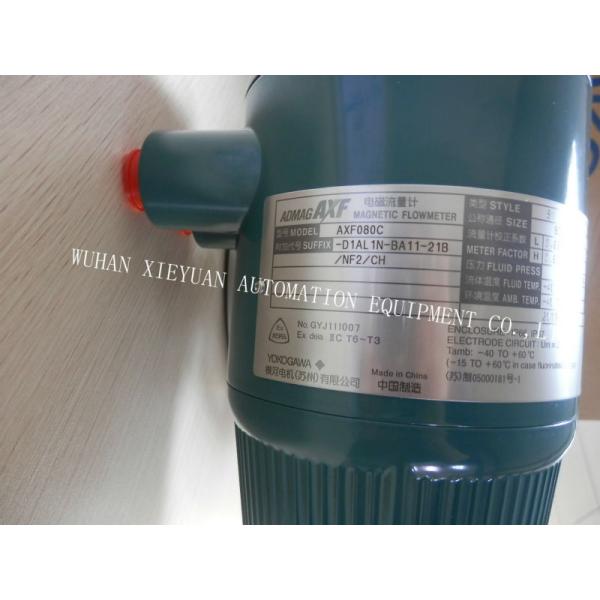

High accurate profesional Yokogawa flowmeter

Name: High accurate profesional Yokogawa flowmeter
Brand: yokogawa
Price: 1 USD

Place of Origin : Japan

Brand Name : yokogawa

Packaging Details : original Yokogawa package in carton or wood

Delivery Time : 6-8 weeks

Payment Terms : Paypal, Aliexpress, Western Union, T/T

MOQ : 1

Contact Now

Quick Details

Place of Origin:Japan
Brand Name:Yokogawa
Model Number:CA

Packaging & Delivery

Packaging Details:	in carton or according to custom's service
Delivery Detail:	2 weeks

Specifications

1.ADMAG AXW provides reliable measurement for water applications
2.ensuring robustness of our magnetic flowmeters.

Yokogawa ADMAG CA Series Capacitance Magnetic Flowmeters

ADMAG CA magnetic flowmeteris excellent at measurement in ultra-low conductivity fluids down to 0.01 microS/cm, adhesive fluids, or slurry fluids. Since ADMAG CA employs a non-wetted electrode construction, picking up the signal voltage by electrode plates provided outside a ceramic pipe through the capacitance of the pipe.

Specifications:

	CA100/200
Size (mm)	15-100	150, 200
Excitation	High frequency
Flow span (m/s)	0.5-10
Min. fluid conductivity (µS/cm)	0.01	1
Protection	IP67, NEMA4X, JIS C0920 watertight type
Hazardous area classification	FM, CSA, TIIS(JIS)	-
Accuracy	±0.5% of flowrate (0.1 µS/cm min.)	±1% of flowrate (1 µS/cm min.)
Repeatability	± 0.1% of flowrate (1 mm/s min.)
Lining material	Ceramic
Electrode Construction	Non-wetted plate electrodes installed on outside of ceramic tube
Fluid pressure	-0.1 MPa to 4 MPa: Ceramic lining size 50 mm or smaller -0.1 MPa to 2 MPa: Ceramic lining size 80 mm or greater
Fluid temperature	-10 deg C to 120 deg C
Process connection	JIS 10K/20K/F12, ANSI 150/300, DIN PN10/16: Wafer
Output signal	4-20 mA DC, pulse, or alarm (transistor contact: 30 V DC, 200 mA max.)
Function	Variable damping time (1 sec min.), self-diagnostics, loop test, BRAIN communication
Indicator	7-seg. LCD with back light
Power supply voltage	80-264 V AC/47-63 Hz or 100-130 V DC, 20.4-28.8 V DC
Maximum power consumption	14 W

MODEL AND SUFFIX CODES:

Model		Suffix code	Description
CA115S CA202S CA204S CA205S CA208S CA210S CA215S CA220S		• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •	Size 15mm(0.5") Size 25mm (1") Size 40mm (1.5") Size 50mm (2") Size 80mm (3 ") Size 100mm (4") Size150mm (6") Size 200mm (8")
Use	G N C	• • • • • • • • • • • • • • • • • • • • • • • • • • • • •	General purpose type FM/CSA Explosion proof type (Only for sizes 15 to 100mm)(3) TIIS(JIS) Flameproof type (Only for sizes 15 to 100mm)(2)
Pipe (*4)		-C• • • • • • • • •	Ceramics
Process Connection (*5)		K1 • • • • • • • • K2 • • • • • • • • B1 • • • • • • • • B2 • • • • • • • • E2 • • • • • • • • H1 • • • • • • • •	JIS 10K wafer JIS 20K wafer ANSI 150 wafer ANSI 300 wafer DIN PN10/16 wafer JISF12(75M) wafer
Electrode material		-N • • • • • • • •	Always N
Earth ring material (*4)		S • • • • • • • • • H • • • • • • • • • V • • • • • • • • •	SUS316 Hastelloy C276 equivalent Titanium
Electrical connection(*2)		J • • • • • • • • • A • • • • • • • • D • • • • • • • • • M • • • • • • • • •	JIS G1/2 (PF1/2) female(2) ANSI 1/2NPT female(3) DIN Pg13.5 female ISO M20X1.5 female
Power supply		-A1 • • • • -D1 • • • •	80 to 264V AC / 100 to 130V DC 20.4 to 28.8V DC
Indicator(*6)		DH• • • DV• • • N • • • •	Horizontal (7 Segment LCD) Vertical (7 Segment LCD) None
Optional specification		/

High accurate profesional Yokogawa flowmeter

Product Tags:

Magnetic flow meter

flow meter

flowmeter

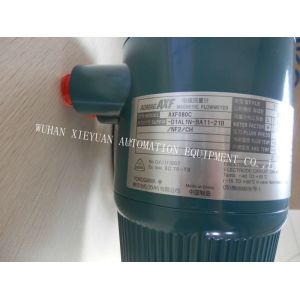

High accurate profesional Yokogawa flowmeter Images
